Myrra 53000 Series: Cost-Effective AC/DC Power for DIN Rail Mounting

The French company Myrra is known for designing and producing high-quality transformers, inductors, and power supplies built for industrial performance. Whether you need a tailor-made solution or a reliable off-the-shelf option, Myrra delivers on efficiency, safety, and affordability.

Efficient and Budget-Friendly AC/DC Power for DIN Rail Systems

This time, we’re spotlighting their 53000 series – a range of AC/DC power supplies made for industrial environments and designed to mount directly onto DIN rails.

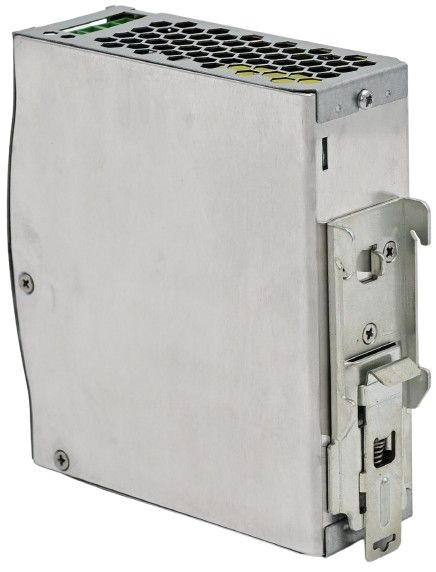

They’re designed to do the job efficiently by converting AC mains power into stable DC output for modern electronics. Installation is straightforward since they support standard TS-35/7.5 and TS-35/15 DIN rails, commonly used in control cabinets. Thanks to their compact 40 mm design, they fit easily into space-saving setups, and the wide input voltage range of 85 to 265 Vac ensures compatibility with a variety of power systems.

AC/DC Power Supplies for DIN Rail: Myrra 53000 Series Models

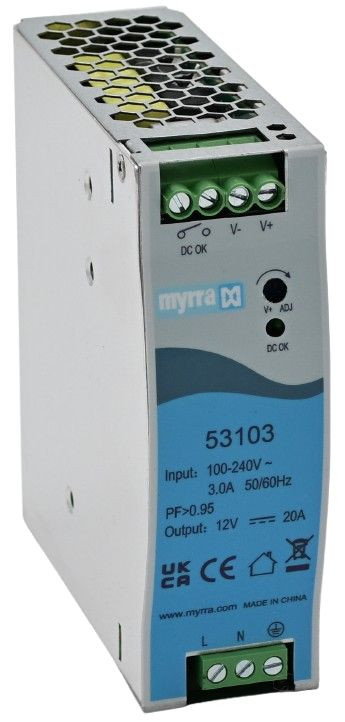

• Myrra 53103 - 12 V, 20 A, max. 240 W

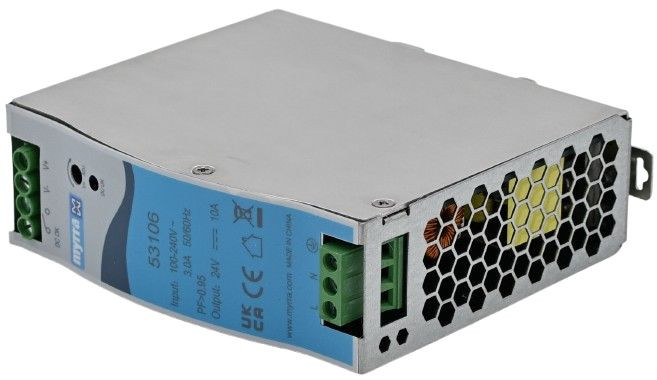

• Myrra 53106 - 24 V, 10 A, max. 240 W
• Myrra 53108 - 48 V, 5 A, max. 240 W

Key Features of the Myrra 53000 Series:

• Wide input range of 85 to 265 Vac
• Active power factor correction (PFC) above 0,95
• Built-in protections: overvoltage (OVP), overcurrent (OCP), overtemperature (OTP), and short-circuit (SCP)
• Slim 40 mm design, ideal for space-limited enclosures
• Compact dimensions of 135 × 123 × 40 mm
• Up to 92 % efficiency
• Compliant with various safety and EMC standards
• Excellent price-to-performance ratio

We’ve added the Myrra 53000 series AC/DC DIN rail power supplies with the greatest potential for industrial applications to our stock, and they’re readily available for your projects. We can also source additional Myrra AC/DC converters for you on request, directly from the manufacturer, at favorable conditions.
