Communicate Through 5G + WiFi6E + GNSS With 9 in 1 Antenna

Replace 9 antennas with one combined 2J6B86JBCFf-B16J from 2J Antennas. The combination of performance, durability, accuracy, and reliability was designed for critical communication. It will be the number 1 choice for the next generation of mobile services. (reading for 3 minutes)

Communicate Through 5G + WiFi6E + GNSS With 9 in 1 Antenna
4x 5G NR MIMO, 4x WiFi-6E MIMO and GNSS antenna in one case

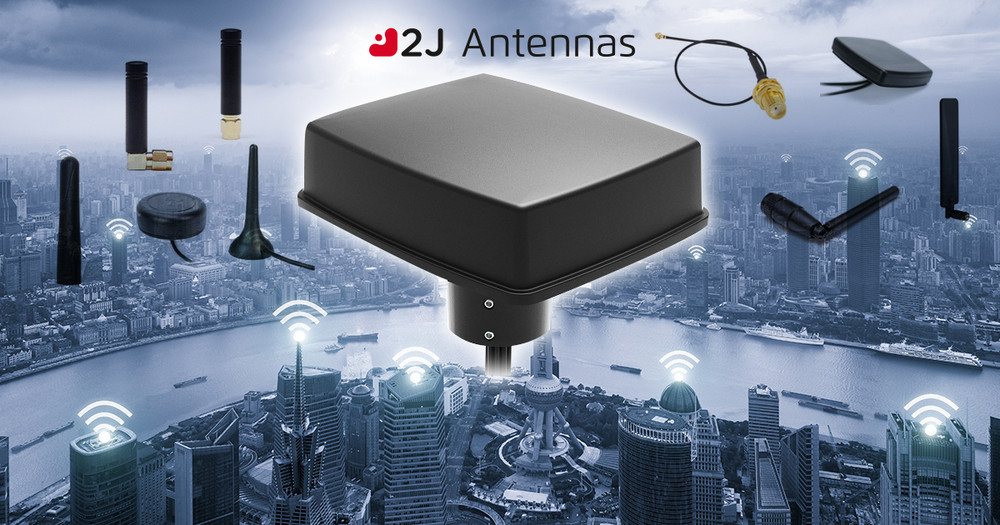

The lightweight 2J6B86JBCFf-B16J antenna from 2J, protected by patented case, is made for pole mounting and designed for fast 5GNR, WiFi-6E 2.4/5.0/6.0 and GNSS bands operating within the 617 MHz - 7125 MHz frequency range.

It is a high-performance and efficient antenna that offers excellent connectivity, accuracy, and reliability for broadband MIMO, wireless connection, and navigation, which allows devices to stay online while moving through areas with various coverage quality.

It is designed for MU-MIMO (multiple users) and mobile terminal applications with excellent ECC (envelope correlation coefficient) and without zero performance. It is the number 1 choice for the next generation of mobile services where performance and reliability are extremely important - such as security forces, medical assistance, and public transport, but also the automotive industry and industrial automation.

The 2J6B86JBCFf-B16J combined antenna is available in various combinations to meet the needs of various applications.

Specifications of 2J6B86JBCFf-B16J antenna

4x mobile 5G NR/4G LTE/3G/2G MIMO

Cables no. 1 to 4 are for mobile devices that operate within the 5GNR, FirstNet, CBRS, 4G LTE, CAT-X, CAT-MX, CAT-NBX, 3G and 2G standards.

Thanks to the fast 5GNR technology and the deployment of edge computing, this antenna outperforms its competition. The goal of the manufacturer, 2J Antennas, was to create an antenna with high gain and high efficiency within the frequency bands 617-5925 MHz while maintaining the 360-degree signal strength without the so-called blind directions.

4x WiFi-6E 2,4/5,0/6,0 GHz ISM MIMO

Cables no. 5 to 8 are for devices that work within Wi-Fi, BT, ZigBee, ISM, SigFox and LoRa standards.

The 2.4/5.0/6.0 GHz bands and WiFi6E technology combine long and short-range capacity and very large data transfer capacity without competing with the operation of other devices or networks. This results in high bandwidth channels, improved security, less interference, and reduces network congestion making it ideal for applications that demand faster WiFi, real-time connectivity, and consistent network availability.

GNSS GPS/GLONASS/BeiDou/Galileo/QZSS

Cable no. 9 is designed for precise navigation applications that operate within GPS, GLONASS, BeiDou, Galileo and QZSS standards.

The signal is received in all planes and maximizes connectivity by avoiding conflicts with spreading signals that are common with "radio-transparent" obstructions and dead spots in urban areas.

The combined 9in1 2J6B86JBCFf-B16J antenna can maintain an active gain of 28dB/2.7V with a BR (band rejection) of ~43dBc. It contains protection against electrostatic discharge (ESD) up to 2 KV and a SAW pre-filter suppressing unnecessary frequencies (in the range of 1561-1602 MHz) from the transition from the antenna to the receiver.

Communicate Through 5G + WiFi6E + GNSS With 9 in 1 Antenna
Installation of 2J6B86JBCFf-B16J antenna

The 9 in 1 antenna is of the Ground Plane Independent type and can be easily mounted on a pole using an adapter, which guarantees reliable and permanent installation on vehicles or any structures.

The manufacturer offers these antennas with the possibility of adhesive, magnetic and screw mounting according to the type and need of the application. See 2J4H86PCFf for more details (Stellar Series).

The low-profile antenna housing is only 53 mm high; it is made of ASA UV stable material with IP67/IP69 protection, offering durability with the highest level of protection against water and moisture.

The antenna terminals are standard SMA-Male (5GNR & GNSS)/SMA-Male-RP (WiFi-6E ISM) and come with 300cm long low-loss D302 (5GNR/WiFi-6E ISM)/LL100 (GNSS) cables. On request, the manufacturer can adapt them as needed. All cables are routed from one side of the antenna housing and are designed to offer an optimal mounting method.

2J Antennas offers a wide range of alternative connectors and cable lengths to meet any application need. All products by 2J Antennas are designed and manufactured without hazardous materials and in full compliance with REACH and RoHS regulations.

Recommended applications with the use of 2J 9 in 1 antenna:



  • Wireless broadband communications
  • Private networks
  • Mobile data and voice
  • Data terminals, base stations, routers
  • Critical communications and public safety
  • Law enforcement
  • Medical help
  • First responder fleets
  • Fire departments
  • Precise navigation
  • Tracking/mapping
  • Industrial machinery
  • Automotive and transportation
  • Buses/transit
  • Rail
  • Telematics
  • Public services
  • Mobile modems

2J Antennas can adapt each of its antennas to your application, e.g., by using different cable lengths, connectors, or mounting methods. In addition to these factors, the price is also influenced by the quantity being ordered, so prices are available upon request. Send us your requirements and we will request a quote from the manufacturer for an antenna exactly for your needs.

Are you interested in more information about 2J Antennas products or technical advice when choosing a product? Or do you have another question or request? Please fill out the following form, we will be happy to help you.

* Data marked with an asterisk (*) are required.

Videos

9 in 1 COMBO ANTENNA 2J6Bxx Series

Antenna offers superior connectivity, accuracy, and reliability for ultra-wideband MIMO, wireless, and navigation, allowing devices to remain online while moving through different coverage areas. The antenna is available in various combinations to meet different application needs.
