LTE Antenna for demanding applications

More and more applications use LTE connection nowadays. To meet a strong market demand for LTE antennas, 2J released a 2JW0124, which is a high gain, universal antenna.
This is an archive article published 04/27/2017. Some information may no longer be up to date and in line with the current state. Please contact us in case of interest.
2JW0124 is a connector mount, high gain multiband antenna, capable to cover 4G/LTE bands (699-960/1710-2690 MHz) and GNSS bands as well (GALILEO E1, GPS and GLONASS frequencies), thus perfectly suitable for tracking applications, where GPS coordinates should be transferred in real time to the cloud.

Based on customer feedback, the manufacturer has extended the offer of 2JW0124-C868b antenna, which is tuned to the frequency of 868MHz instead of GSM band. This way it is better suited for the devices using this frequency. 2JW0124 is available in black and white.

Please feel free to ask our sales persons if you have a special requirement on antenna. Different cable length, frequency tuning, special connector types are available even at small quantities. Send your technical questions on

Please visit our shop to see more 2J antennas available right out of our stock.

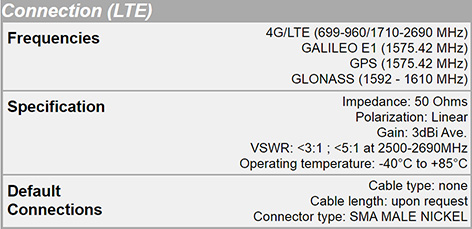

Electrical specifications:

LTE Antenna for demanding applications

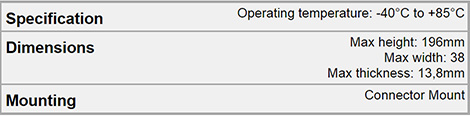

Mechanical specification:
LTE Antenna for demanding applications
