Small but Powerful Internal Antenna

Things are getting smaller (except for cars) and this is true also for antennas. 2JE18 is a small surface mounted antenna with dimensions of only 40x7x3mm. It is designed for a surface mounting directly on PCB- and thanks to its excellent parameters, it is intended to be used in IoT devices.
This is an archive article published 09/04/2018. Some information may no longer be up to date and in line with the current state. Please contact us in case of interest.

Designed to meet customers’ requirements for connected wireless nodes, 2JE18 covers a wide range of frequencies in 698-960MHz, 1710-2170MHz and 2500-2700MHz bands.

The B20 (800MHz) is widely used for the NB IoT networks in Europe.

Because of flexible design this antenna covers also frequency bands used for 2G and 3G networks, which makes it suitable also for „upgrades“ in already running projects.

The radiation pattern is very smooth and consistent for all covered bands and VSWR is specified in the whole frequency spectrum. This parameter is often omitted by customers or only an average value is specified in the datasheet.

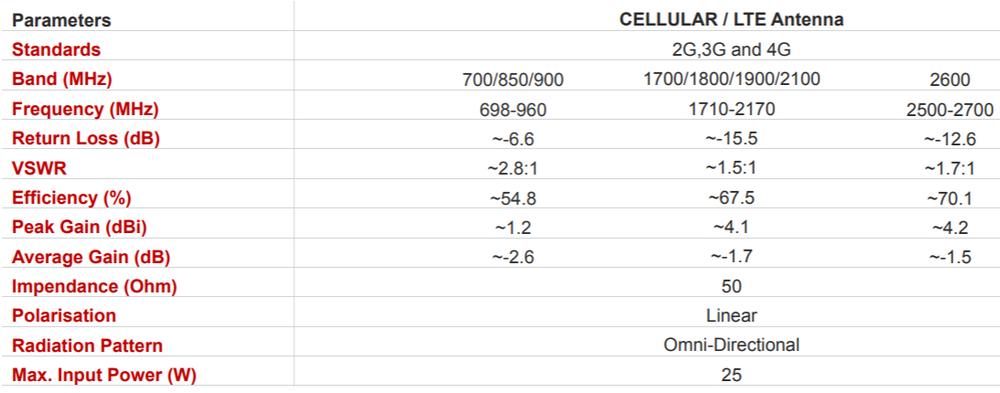

Main parameters:

Small but Powerful Internal Antenna

If you are interested in other 2J products, or you need more information, we are ready to help you at

Do not miss these articles

Do you like our articles? Do not miss any of them! You do not have to worry about anything, we will arrange delivery to you.

Main products

2JE18 2J

Embedded SMT Antenna LTE, Fiberglass, Brick 40x7x3mm


Ord. No.: 287600
Manufacturer: 2J
in stock 497 pcs
1 pcs+
2 pcs+
10 pcs+
50 pcs+
200 pcs+
2,04 €
1,85 €
1,65 €
1,51 €
1,42 €
