Vinculum-II - 2nd generation of USB Host / Slave controllers

Vinculum-II (VNC2) is FTDI’s 2nd generation of USB Host / Slave controllers. The device features a powerful 16-bit MCU core, with embedded 256KB Flash and 16KB RAM memory. The device supports a range of flexible interfaces including UART, SPI, FIFO and PWM. The complete USB protocol data processing is handled entirely by hardware resources within the device freeing up processing resources for user developed applications.
This is an archive article published 10/05/2010. Some information may no longer be up to date and in line with the current state. Please contact us in case of interest.

The VNC2 is a fully programmable device and is supported with the new Vinculum Software Tool Suite, which provides an easy to use ‘C’ based development environment to enable user firmware development. The VNC2 offers a complete USB system solution in a single IC.

Key Hardware Features
  • Dual USB 2.0 Host / Slave controller.
  • Embedded 16-bit Harvard architecture MCU core, with 256KBytes of Flash memory and 16Kbytes RAM.
  • 2 x Full-Speed / Low-speed USB 2.0 ports supporting Host or Slave operation.
  • Programmable UART interface, supports up to 6MBaud transfers.
  • 8-bit wide FIFO interface.
  • 2 x SPI slave interfaces, 1 x SPI master interface.
  • PWM (Pulse Width Modulation) interface.
  • 4 channel DMA controller, and general purpose timers.
  • Support for reduced power modes.
  • Multiple packages size options (32-/48-/64-pin QFN and LQFP packages).

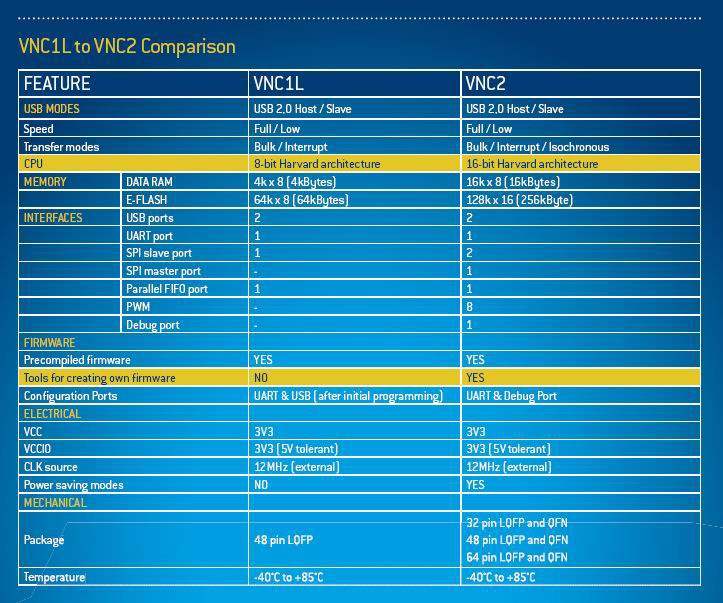

  • Backwards compatible with VNC1L with 48-pin LQFP package.
  • RoHS compliant, and extended temperature support (-40°C to +85°C).
  • Enhanced features with Vinculum Software Tool Suite
  • Based on royalty-free flexible ‘C’ based Integrated Development Environment.
  • Includes compiler, drivers and RTOS kernel to support user firmware development.
  • Debug interface for real-time hardware based code debug.
  • Pre-compiled libraries for several USB classes including FAT file system support.

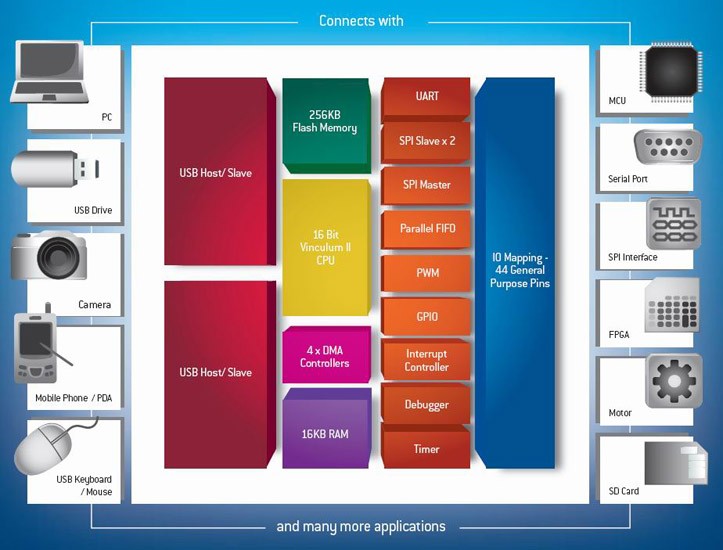

Block Giagram
