There is always a challenge for engineers to include a battery compartment into a battery powered device. We have prepared an interesting video for you with an overview of the battery holders for different battery cells.
This is an archive article published 01/31/2019. Some information may no longer be up to date and in line with the current state. Please contact us in case of interest.
The place for battery compartment must be compact, easy to operate, dustproof and rugged to withstand battery exchange procedures.

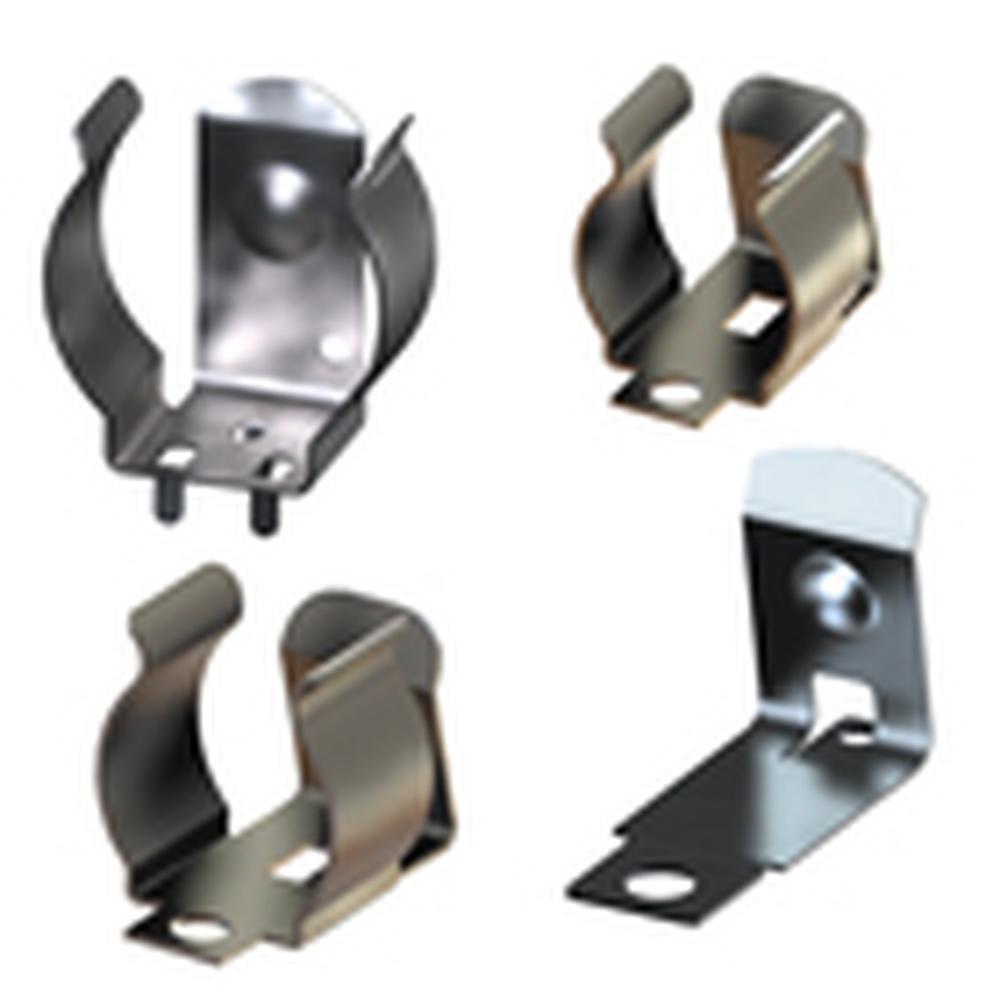

If you often face such a situation, check the video and learn more about Keystone's broad selection of battery clips, contacts, holders and straps that are designed with leading edge technologies to accommodate all major manufacturers' battery cells and the latest chemical technologies.
Broad selection of battery clips, contacts, holders and straps designed with leading edge technology in mind to accommodate all major manufacturers' battery cells and the latest chemistries.

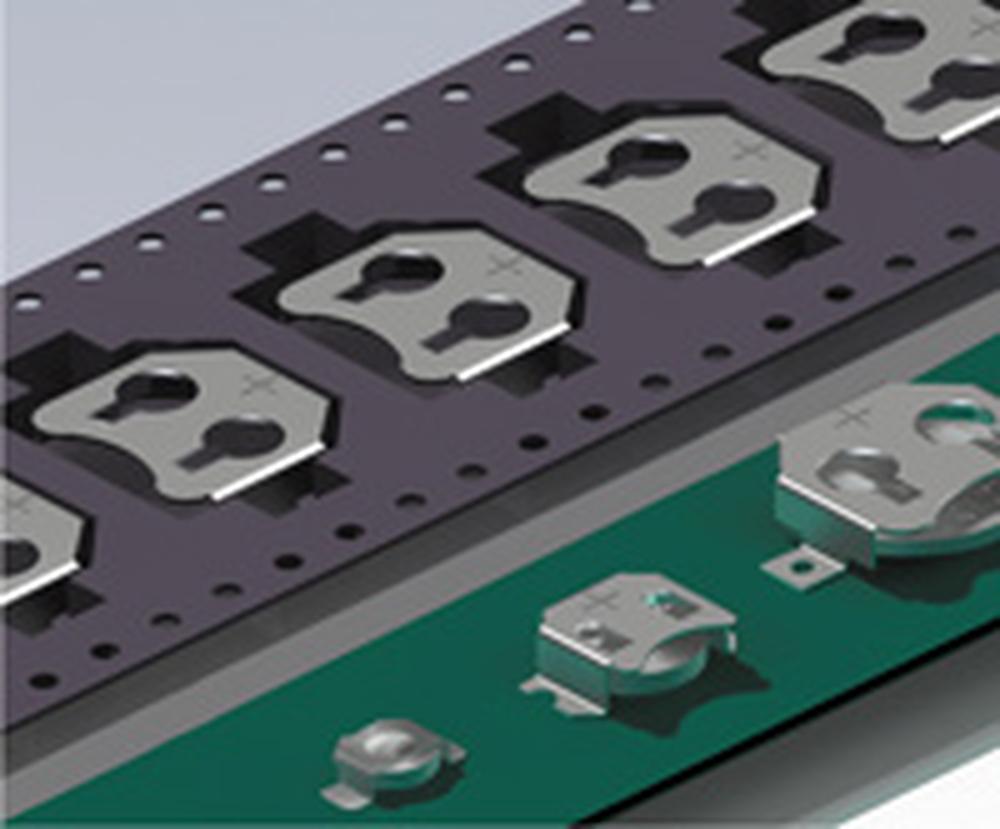

(THM) Thru Hole Mount & (SMT) Surface Mount retainers are available for batteries with diameter of 4.8mm, 6.8mm, 11.6mm, 12mm, 16mm, 20mm, 23mm and 24mm.
They are designed for memory back-up and stand-by applications. These contacts permit quick and easy coin cell replacement and installation. They eliminate "soldered-in" cells in computer, video, telecommunication and similar PCB based applications. They reliably replace soldered batteries and moreover, there is no need to use any tools to replace them.

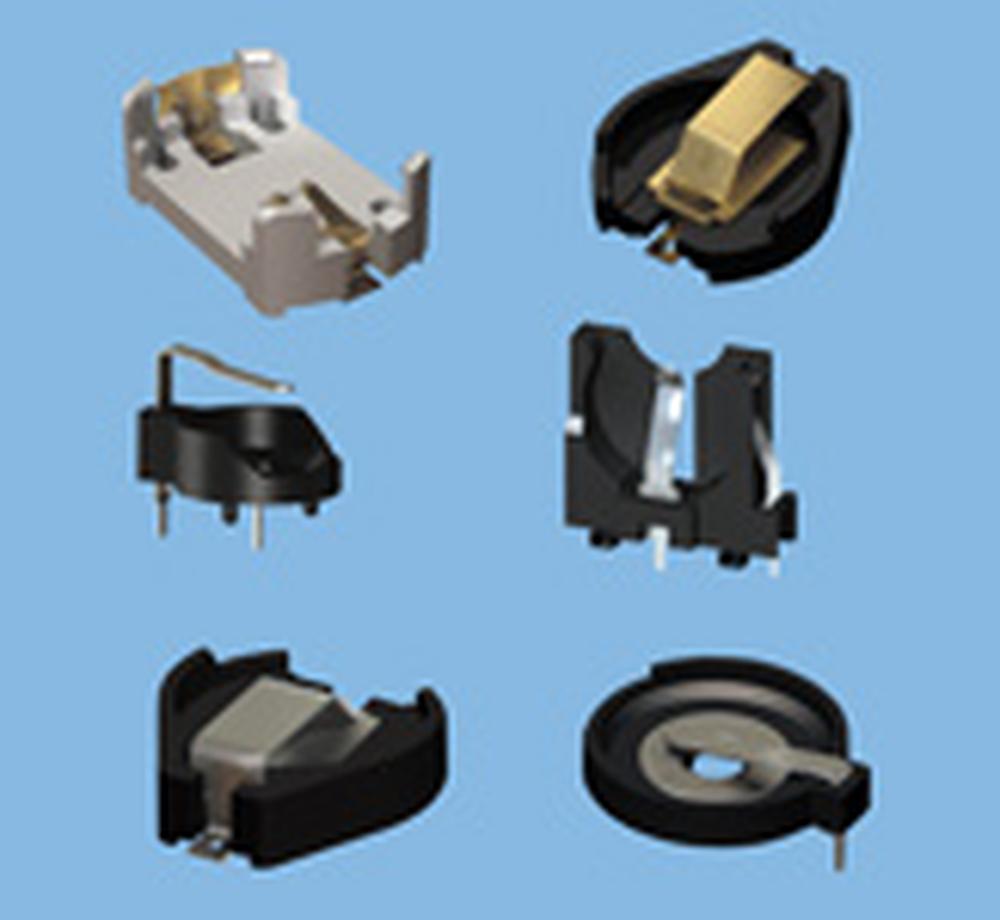

(THM) Thru Hole Mount & (SMT) Surface Mount battery holders available for 12mm, 16mm, 20mm, 23mm, 24mm and 30mm diameter cells.
Their design advantages are following:
- Low profile for high density packaging - Reliable spring tension contacts assure low contact resistance - Retains battery securely to withstand shock and vibration - Rugged construction, light weight - Compatible with vacuum and mechanical pick & place systems - Base material UL rated 94V-0. Impervious to most industrial solvents - Clearly marked polarities to help guard against improper insertion

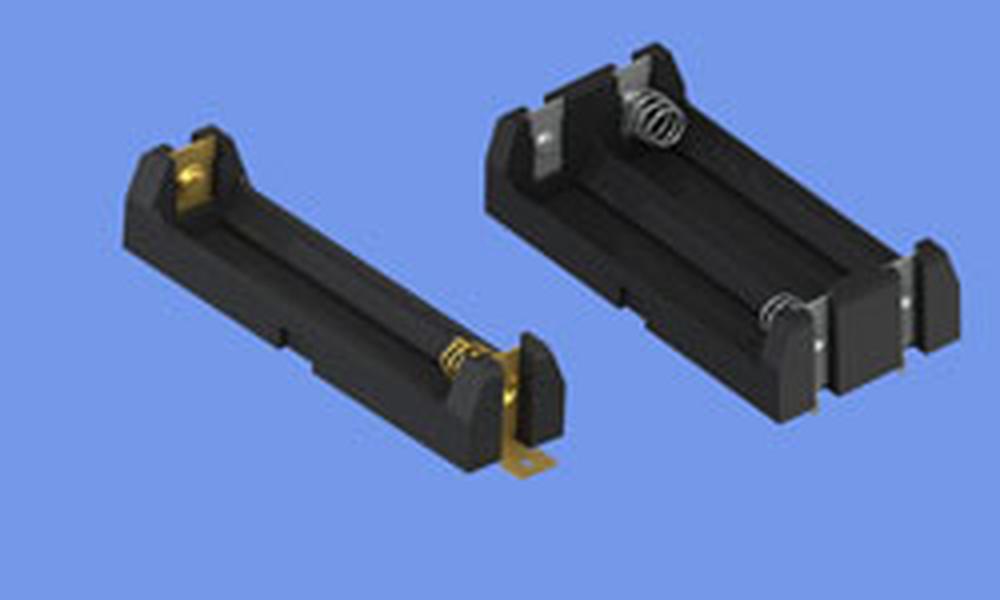

This group of holders includes THM and SMT holders or holders with wire leads for A, AA, AAA, 1/2AA, CR2, CR123A, 1/3N, C, D, N, 12 Volt, 18350, 18650, 26650 batteries.
We can find here:: - Plastic Cost Effective Holders with polypropylene base and coil spring contacts - High Performance Leaf Spring Holders, high temperature-resistant and with nylon base - High Performance Coil Spring Holders, high temperature-resistant and with nylon base - Heavy Duty Holders, solder lugs or PCB mount holders.
