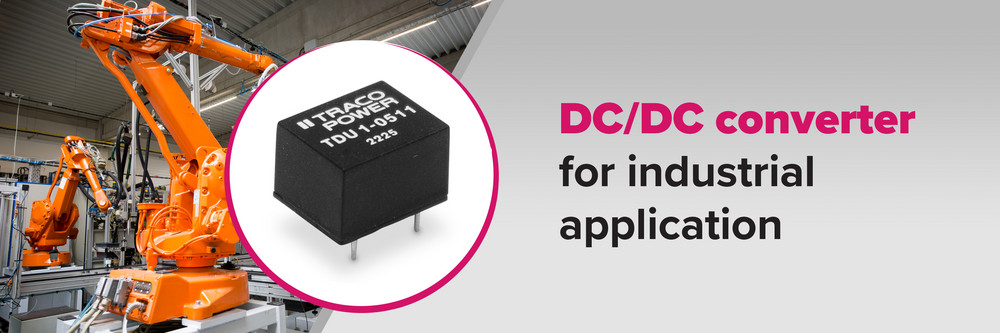

1 W DC/DC converters of the TDU 1 series by Traco Power in DIP-8 package
“The new TDU 1 series consists of a set of isolated 1 Watt DC/DC converters with unregulated outputs in a compact DIP-8 package, which is currently the smallest one on the market. They are designed to offer a compact low-cost alternative to regulated types with no compromises in quality and durability to which we are used to with the Traco Power brand,” says Pavel Kováč, SOS electronic product specialist.
In terms of parameters, the TDU 1 series of 1W DC/DC converters are basically standard 1W Traco Power converters, featuring permanent short-circuit protection, 1500 VDC I/O isolation, and an operating temperature range of -40°C to 85° C without performance reduction.
Thanks to their small dimensions, they are an ideal solution for many space-critical applications, for example in communication equipment, devices and industrial electronics, where the standard SIP-7 package does not fit.
|Interesting fact: The DIP-8 package has dimensions of only 12,7 x 10,2 x 8 mm|
Key features of 1 W DC/DC converters of TDU1 series by Traco Power:
- Compact dimensions in DIP-8 package
- Continuous short circuit protection
- Unregulated output
- Operating temperature range –40 to +85 °C without performance derating
- I/O isolation 1500 VDC
- Input voltage ranges (±10 %): 5, 12, 24 VDC
- Efficiency up to 83 %
- 3-year product warranty
We have included the TDU 1 series of 1 W DC/DC converters by Traco Power in our product range. The most used inverters with standard parameters will be available directly from our warehouse. We will be happy to provide you with other types upon order.
